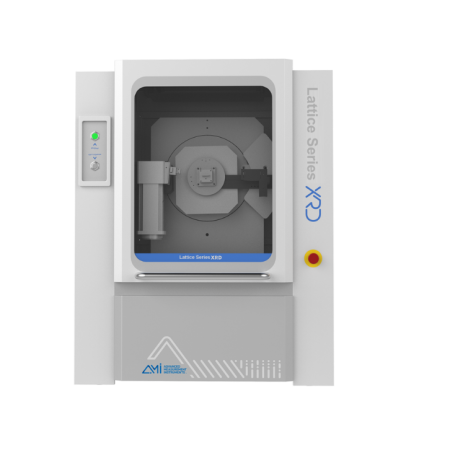

Máy phân tích nhiễu xạ tia X InSight (X-Ray Diffraction)

$Máy phân tích nhiễu xạ tia X InSight (X-Ray Diffraction)$

Máy phân tích nhiễu xạ tia X InSight (X-Ray Diffraction)

Lượt xem:
1285
Thương hiệu:
Advanced measurement instruments (AMI) - Mỹ
Giá:
Liên hệ

● Được thiết kế để kiểm tra nhiễu xạ tia X truyền qua tại chỗ đối với cell dạng túi.

● Thu thập đồng thời dữ liệu nhiễu xạ tia X của cực âm/cực dương.

● Phạm vi kiểm soát nhiệt độ: -30°C đến 300°C.

Y Tế Quốc phòng

Introduction

Soft-pack (pouch) batteries play a critical role in both cutting-edge research and next-generation commercial energy storage. Yet studying their internal behavior during charge and discharge— especially over long cycles—has been limited by the constraints of traditional in-situ XRD methods. The InSight Series changes that.

This dedicated in-situ Transmission X-ray Diffractometer is purpose-built for soft-pack battery analysis. Unlike conventional reflective-style molds, the InSight Series uses a vertical transmission geometry to collect diffraction data from both the anode and cathode simultaneously—across the full cell thickness.

Paired with a high-intensity 1600 W Mo X-ray source, a photon-counting 2D array detector, and precision temperature control from -30°C to 300°C, the InSight Series offers unmatched resolution, speed, and stability for real-time battery material studies.

Why In-situ Transmission XRD for Soft-Pack Batteries?

True Long-Term Cycling:
Unlike coin cell molds, soft-pack batteries offer superior sealing and stability for thousands of cycles.
Full-Depth Material Insight:
Vertical transmission geometry collects diffraction data through the entire pouch— enabling dual-electrode analysis.
Superior Resolution at Any Thickness:
Focused beam transmission ensures peak clarity, even in thicker pouch cells.
Thermal Behavior Included:
Variable-temperature stage enables in-situ measurements at both sub-zero and high- temperature conditions.
Electrochemistry + Structure, Together:
Seamless integration with an electrochemical workstation allows simultaneous control and data acquisition during charging/discharging.

In-situ Transmission XRD Optical Path Diagram

Features

• 1600 W Molybdenum X-ray Tube

Delivers strong, high-penetration X-rays optimized for soft-pack battery materials.

• Photon-Counting 2D Array Detector

High-efficiency, low-noise capture of fine diffraction details, with fast scan times.

• Transmission Geometry

X-rays enter through one side of the pouch and exit through the opposite—ideal for full-cell analysis.

• Temperature-Controlled Sample Stage

Wide range (-30°C to 300°C) supports studies of degradation, performance, and thermal failure.

• Precision Goniometer

Theta–2Theta geometry with a 144 mm radius for stable, accurate angular scanning.

• Compact Footprint

Lab-friendly design with powerful capability: 900 × 680 × 550 mm, 100 kg.

Examples

From anode intercalation to cathode degradation and thermal behavior, these performance examples demonstrate the system’s ability to deliver high-resolution, high-confidence data—in real time, inside working soft-pack batteries.
