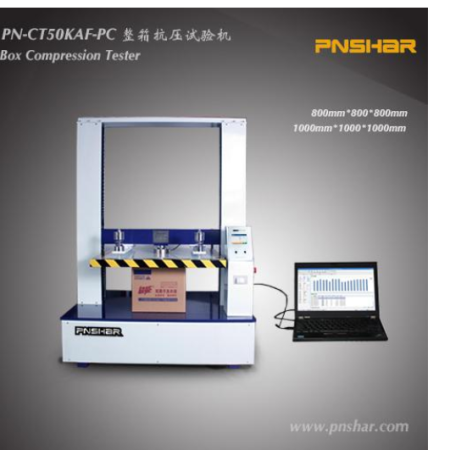

Máy kiểm tra độ nén thùng carton PN-CT50KAF

Lượt xem:
1921
Thương hiệu:
Pnshar - Trung Quốc
Giá:
Liên hệ

Máy kiểm tra độ nén hộp PN-CT50KAF là phiên bản nâng cấp của máy kiểm tra độ nén hộp PN-CT50KA. Nó có chức năng kết nối mạng WIFI.

Introduction

PN-CT50KAF box compression tester is an upgraded version of PN-CT50KA box compression tester. It has WIFI networking function. Under networked conditions, the tested data is automatically encrypted and uploaded to the cloud server, which is the basis of big data analysis. It is an economical corrugated cardboard box, honeycomb cardboard box and other packaging compression and stacking test instrument. Its performance parameters and technical indicators comply with GB / T 4857.3/4, ISO 12048、ISO 2234 and other standards. It is mainly used for compressive strength test of various small corrugated cardboard boxes or other materials, such as food and beverage, instant noodle packaging, cosmetics packaging, beer packaging, grain and oil packaging, etc, with compressive strength less than 10kN.

The instrument has three independent modes of operation:
1. Strength test: measure the ultimate compressive strength and deformation of the box;
2. Fixed value test: The overall performance of the box can be tested according to the set pressure and deformation.
3. Stacking test: Simulate the stacking status of the warehouse, and carry out the stacking test of different conditions.

Technical parameter

Item	600×600×600	600×800×600		800×800×800	1000×1000×1000
Power Supply	AC220 V±10 % 5 A 50/60 Hz(AC110V Optional)
Indication Error	±1 %
Indication variability	≤1 %
Resolution	0.01 N
Capacity	≤10000N			≤20000N
Deformation error	±0.1 mm
Platen size	600mm×600mm		600mm×800mm	800mm×800 mm	1000×1000 mm
Parallelism	≤ The length of the long side of the platen*0.2% mm
Working stroke	(20～600)mm			(20～800)mm	(20～1000)mm
Test speed	(10 ± 1)mm/min(≤600 mm/min Can set)
Back speed	≤600 mm/min
HMI	7＂Color touchscreen
Printing	Modular integrated thermal printer
Communication	WIFI, RS232(standard) / USB(Optional)
Working Environment	Indoor temperature (20±10)℃；relative humidity≤80 ％
Dimensions mm	(1050×630×1200)		(1050×830×1200)	(1256×850×1530)	(1436×1030×1758)
Net Weight	About 255 kg		About 285 kg	About 640 kg	About 700 kg

Product features

1.   [Internet of Things Technology]: It adopts a new module circuit design and has a WIFI Internet of Things function. After the network is connected, the test results can be saved to the cloud server.
2.    [Big Data Management]: It can be connected to ERP, LIMS, or PN-QMS100 series quality management system, which can realize real-time mass storage, query, management, reporting, big data analysis statistics, and a visual large-screen display of detection data.
3.   [Safety and reliability]: With an emergency stop button, it has multiple alarm safety protection functions such as over-limit and over-range.
4.    [High-efficiency transmission]: ball screw and double guide column structure are adopted, which has strong stability and high transmission efficiency.
5.   [High-precision control]: using servo motor control, using subdivision technology, accurate positioning, and fast speed response.
6.    [Fully automatic test]: Using a high-speed ARM processor, preset parameters one-click intelligent test to improve accuracy and efficiency.
7.    [Visual display]: with curve and column chart display function, convenient for the review of test results.
8.   [Multi-unit switching]: N, kgf, lbf, etc., multiple language operating system switching.
9.   [Professional version software]: can be connected to special computer test software (optional), real-time display of sample force test deformation curve, massive test process data storage and query, management, analysis, statistics, reports, and other functions.

National standard

GB/T 4857.3、GB/T 4857.4、ISO 12048、ISO 2234、QB/T 1048
